Bulk Particle Collector


SC-V10 Kit Layout

The number of white powder calls across the nation has continued to grow, and how first responders react to and collect the particles is becoming increasingly important and costly. Seacoast Science, Inc. has developed a new portable powder evidence collection kit, the SC-V10. This kit is designed for high-efficiency collection of powder evidence.



Key features of the SC-V10 include hand-held operation, battery power, and replaceable front-end evidence traps, intended as one-time use collectors. This front-end is a self-contained, filter system that traps particles into a removable, resealable laboratory (glass) vial, thus providing the analytical team with easier sample handling. The different nozzle attachments allow the users to collect from different surfaces.

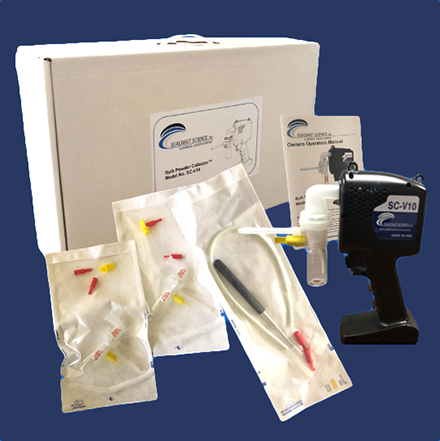

The SC-V10 collection kit contains a reusable pump handle, three (3) pre-sealed collection nozzles, end caps for front and back of nozzle to protect the collected trace evidence in transport, and an extension hose with control wand for the hard to reach areas. This new vacuum improves the capability and efficiency of collecting powders, while isolating the evidence for later analysis.

Type Bulk Collector
Length 6.38” (162 mm)
Width 1.99” (50.7 mm)
Height 8.58” (218 mm)
Weight 1 lb 12 oz (794 g)
Battery Life >100 1-minute on/off cycles
Collection Vial Size Comes with standard 20mL glass vial.
Replaceable with any vial with 22/400 thread finishes.
Particle Size 0.45 microns up to ~350 microns in size
Collection Efficiency Collects at > 95% efficiency with ~85% of collected particles trapped in removable/re-sealable collection vial

Collector Accessories

Additional accessories can be purchased separately.

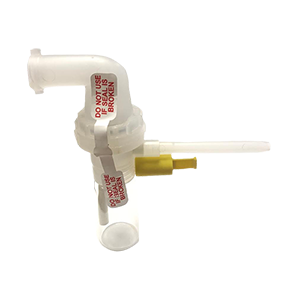

20 Milliliter (mL) Capture Vial

Replacement Nozzle: SC-VPC1-20

  • Replacement nozzles are compatible with series SC-V10 Pump Handel
  • One-Time Use
  • Comes pre-packaged with Caps and Plugs for use after collection
  • Sold Individually or in Sets of Fours


Reorder Codes:
Individual: SC-VPC1-20
Set of four: SC-VPC4-20

20 Milliliter (mL) Capture Vial

   Request a quote or additional information

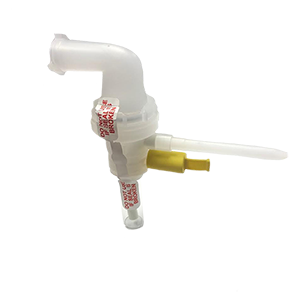

4 Milliliter (mL) Capture Vial

Replacement Nozzle: SC-VPC1-4

  • Replacement nozzles are compatible with series SC-V10 Pump Handel
  • One-Time Use
  • Comes pre-packaged with Caps and Plugs for use after collection
  • Sold Individually or in Sets of Fours


Reorder Codes:
Individual: SC-VPC1-04
Set of four: SC-VPC4-04

4 Milliliter (mL) Capture Vial

   Request a quote or additional information

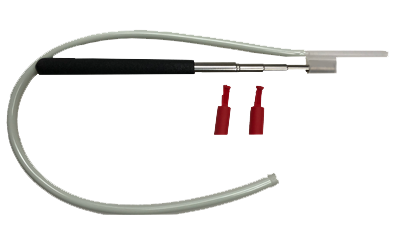

Extension Accessory

The Extension Accessory is an 18-inch tube with telescopic rod designed to extend the reach of the collection nozzle.

  • Can also be used to collect in hard-to-reach areas
  • Telescopes from 8” (closed) to just 22” (extended)
  • Soft cushion grip

Reorder Code: SC-VAP01

Extension Accessory


   Request a quote or additional information
